4T2Portable

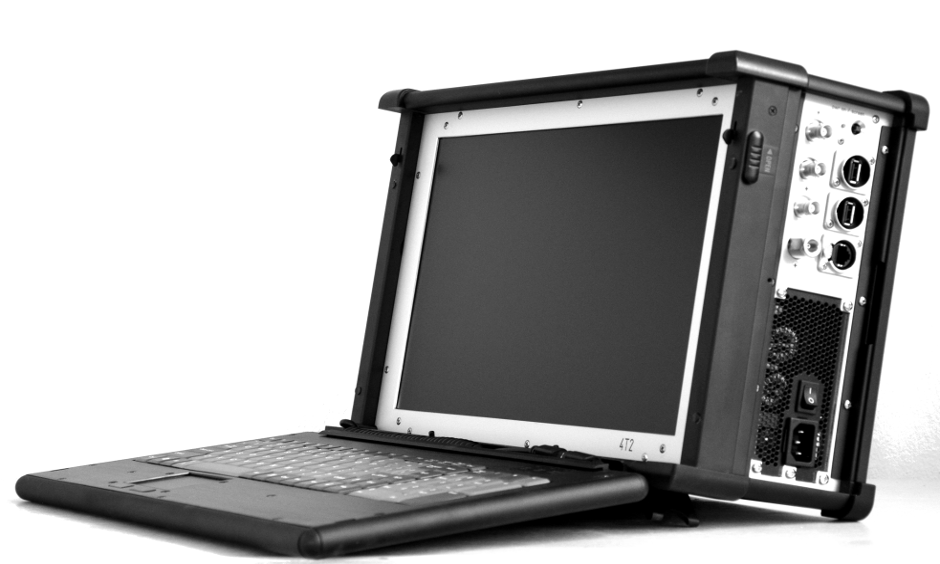

4T2 Portable

Enhanced features, lower cost, lower weight, more powerful platform - just what our clients were asking for

  • DVB-T2 MI analyser
    • on ASI or on IP input
  • Transport Stream analyser with Multi-Viewer
    • SI-Tree, SI-table repetition, TR.101.290  1st, 2nd, 3rd priorities, Services & PIDs display, Data-rates  display & graph, PCR-rate & Jitter, H.264 HD decoder,  Black/Freeze detector, Audio mute, triggered  capture, log-file
  • DVB-T/T2 RF analyser with
    • Level, MER, EVM, bit errors Constellation display,
      Impulse Response display, Spectrum display
  • DVB-S/S2 RF analyser with
    • Level, SNR, bit errors
